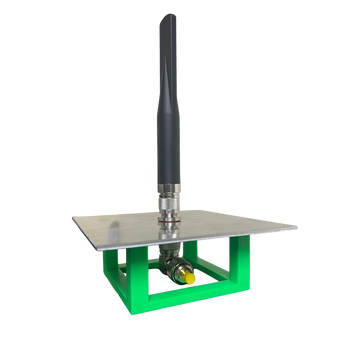

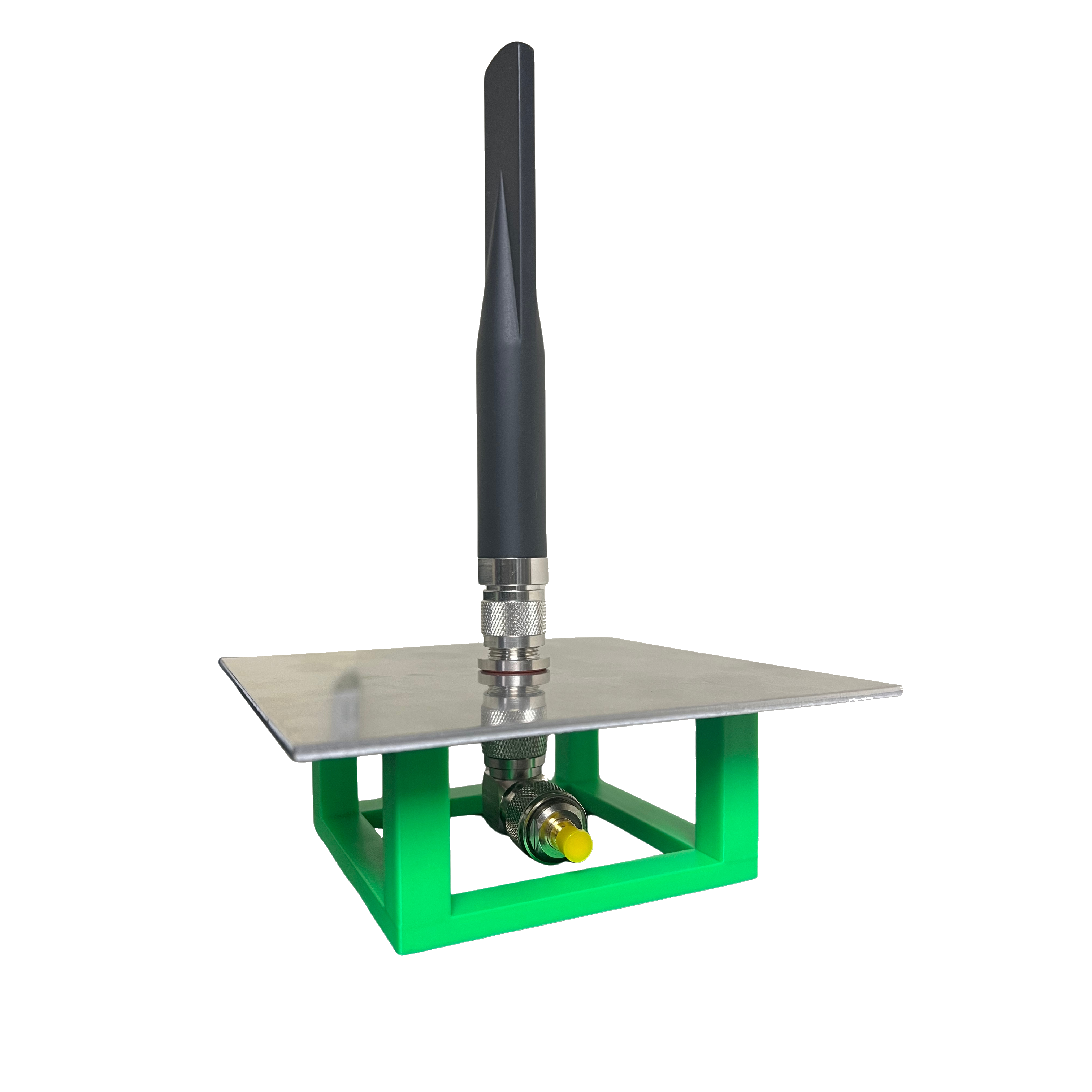

LoRa Antenna Test Stand (N-Type)

Repeatable antenna measurements start with repeatable positioning.

The Atomico LoRa Antenna Test Stand provides a stable tabletop fixture for N-type antennas used with Meshtastic, MeshCore, and other LoRa systems. It helps keep antenna orientation and test geometry consistent during comparison tests, VNA sweeps, and range experiments.

Useful for

• Side-by-side LoRa antenna comparisons
• Vector network analyzer and impedance-testing setups
• Meshtastic and MeshCore development
• Documented, repeatable bench experiments

Configuration

This version is designed for an N-type antenna connection. Verify your antenna and cable connector before ordering.

What is not included

Antenna, coaxial cable, adapters, radio, and test instrumentation are not included.

Built in the Atomico workshop in Danbury, Connecticut. This fixture is a positioning aid, not a calibrated RF reference standard.
